  1. Okta SSO Configuration
    2. Prerequisites
  2. To proceed with configuring the login with SSO through Okta, you must:
    • Have Administrative access to an Okta Org.
    • Be an administrator for an account (tenant) in Zoomifier.


    Supported Features - Single Sign-On (OpenID Connect)
  3. The organization’s Okta account needs to be linked with Zoomifier’s Okta Application. To do that, follow the instructions provided below:


    4. Okta Configuration Steps
  4. To_enable_this_feature:
  5. Step 1. Log in to your Organization’s Okta tenant

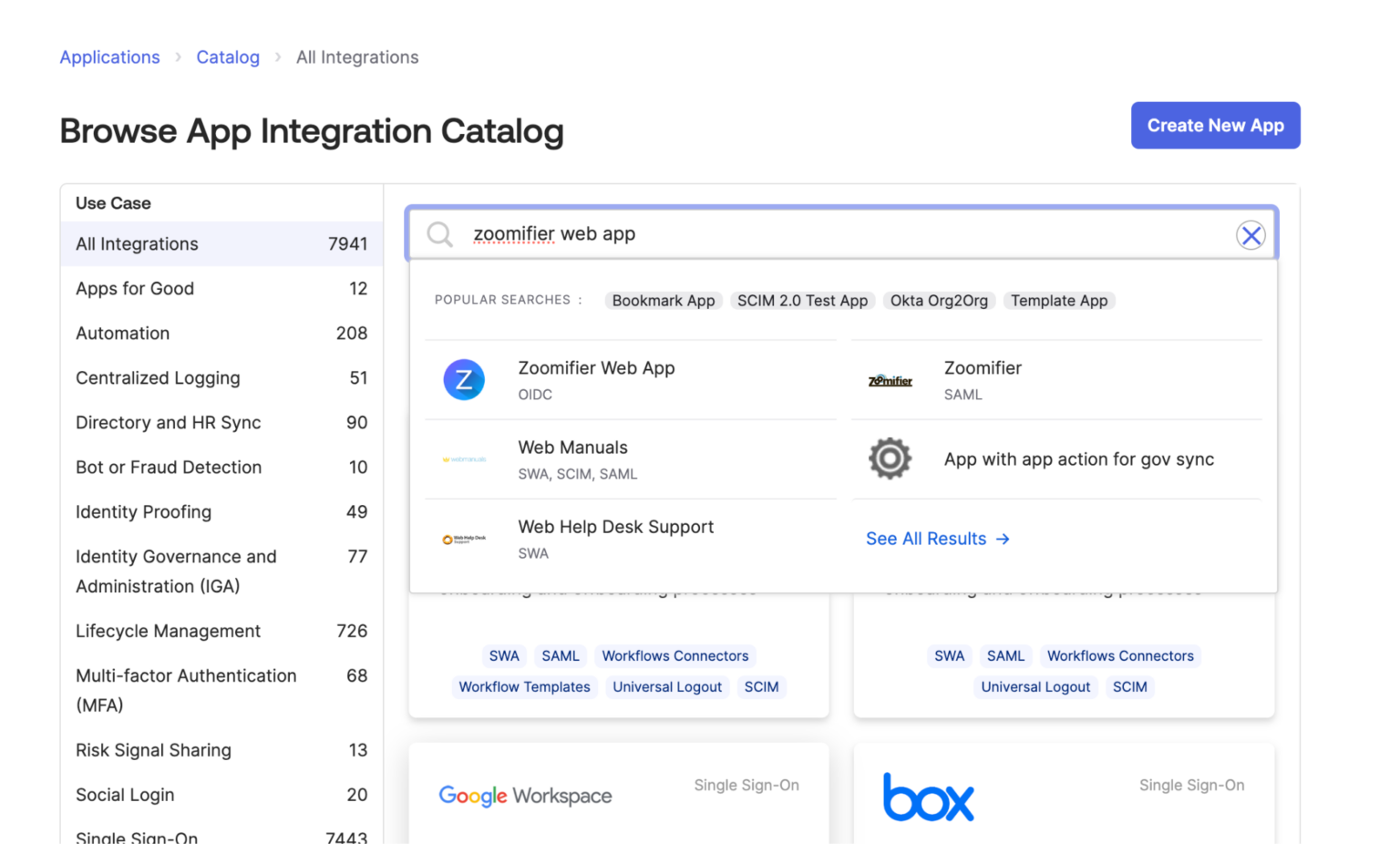

  6. Step 2. Navigate to Applications > Applications and click on Browse App Catalog
  7. Step 3.Search for Zoomifier Web App and select the Zoomifier Web App with the OIDC.
    8. Toolbar Controls Toolbar Controls
  8. Step 4.Click the Add Integration button
  9. Step 5.You will be navigated to the General Settings page -> Under General Settings:
    • Application Label: Keep it as Zoomifier Web App
    • Application Visibility: It is optional. You can skip it or set it based on your requirements. Click Done

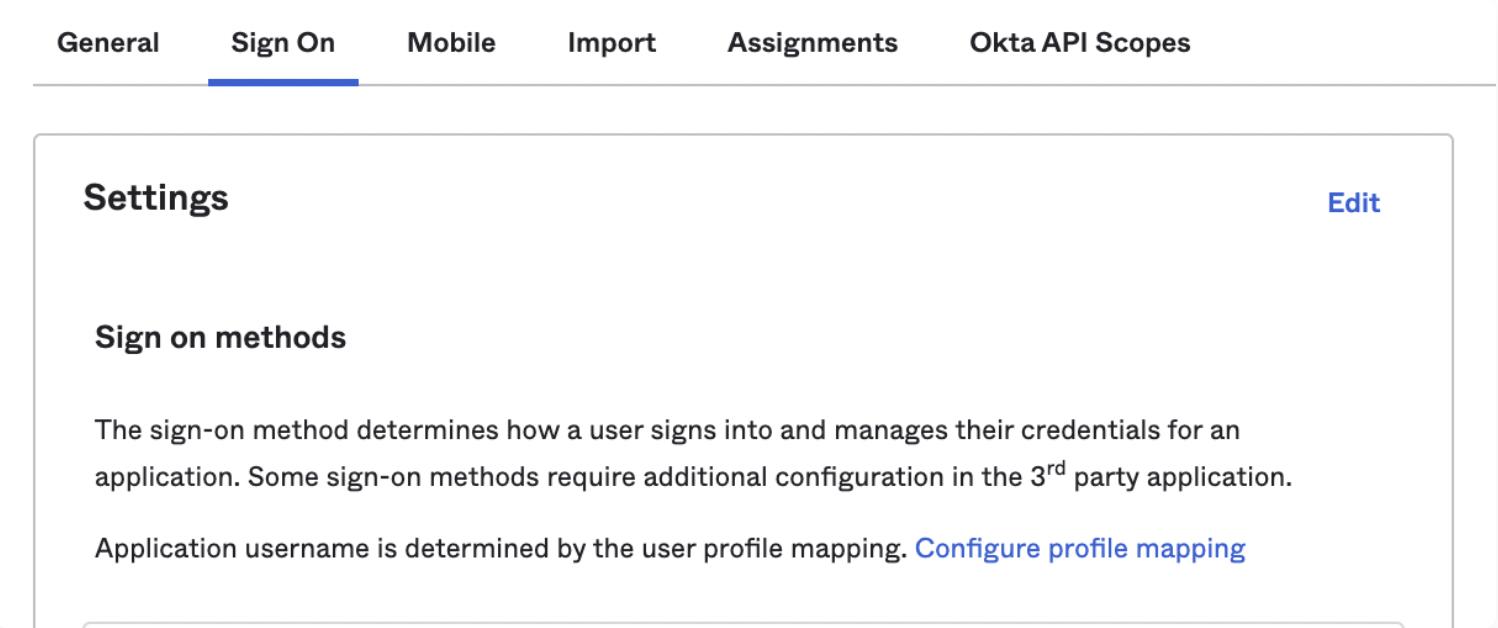

    • Click the Sign On tab and click Edit
      • Toolbar Controls


  10. Step 6.Please collect the following information and share it on the Zoomifier Platform.
    • Client Id
    • Okta Issuer (Host) URL

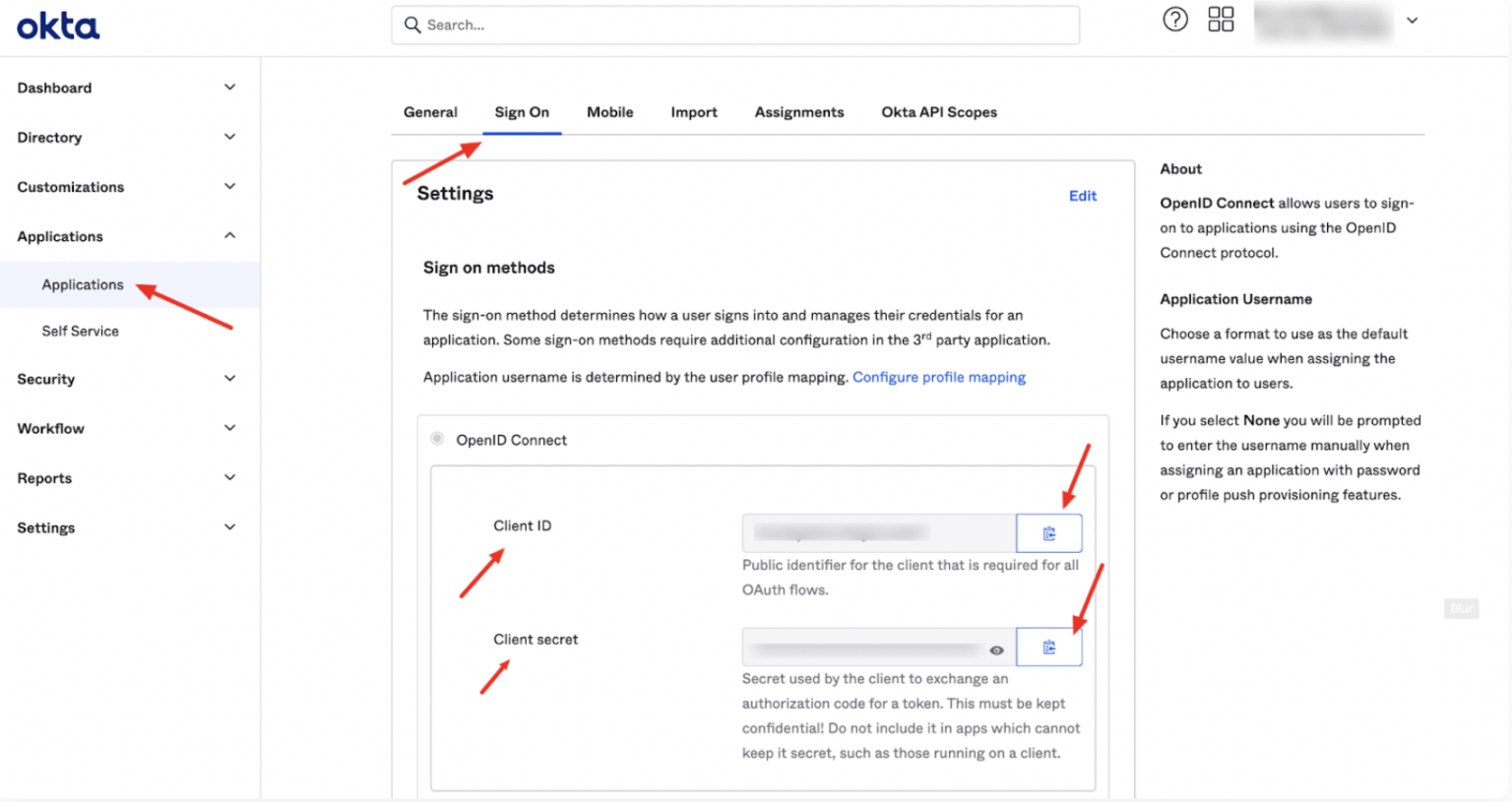

    • From the Application > Sign On tab, copy the Client ID, Client Secret (Click the eye button to toggle the visibility)
      • Toolbar Controls

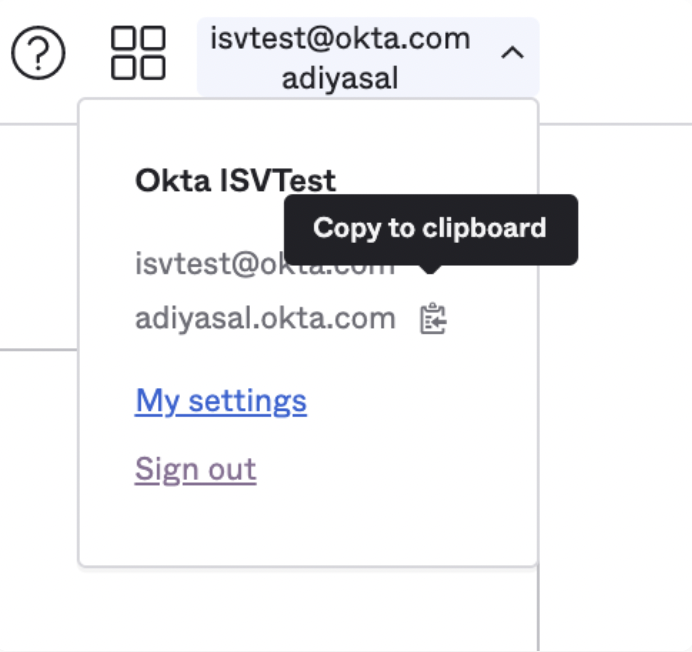

    • From the top right dropdown, copy the Issuer (Host) URL
      • Toolbar Controls

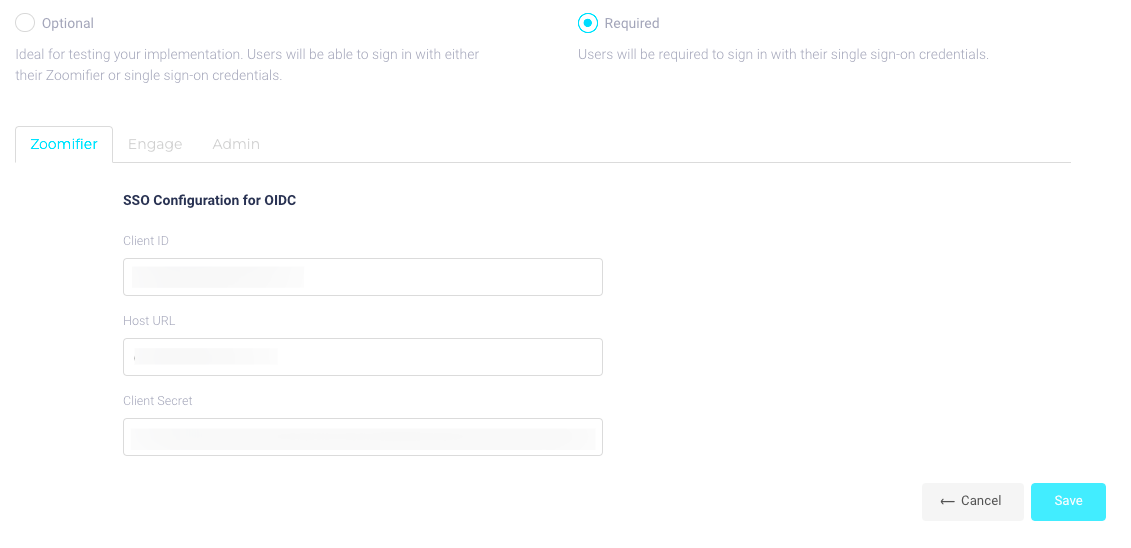

  11. Step 7.On Zoomifier Platform, navigate to Global Settings -> SSO to paste this information from Okta within Zoomifier in the respective fields on the settings page.

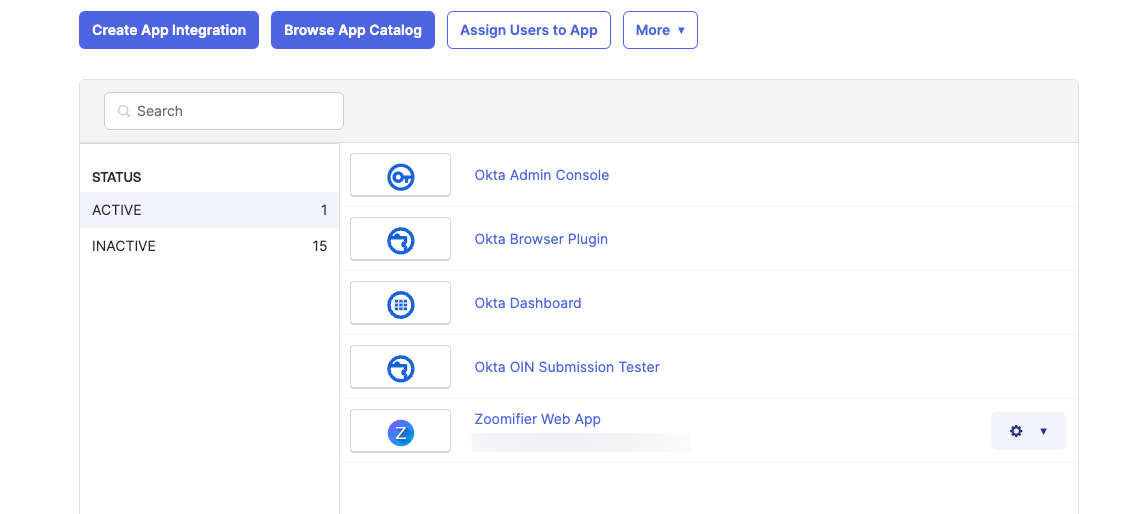

  12. Step 8.Steps to assign users to the Zoomifier Web Application within Okta.
  13.  Optional. if you want to test your Okta configuration. Please keep it optional, until you have not tested the configuration.
  14.  Required.Users will be required to sign in with their single sign-on credentials
    15. Toolbar Controls
  15. Step 9.Log out and test your Okta configuration.

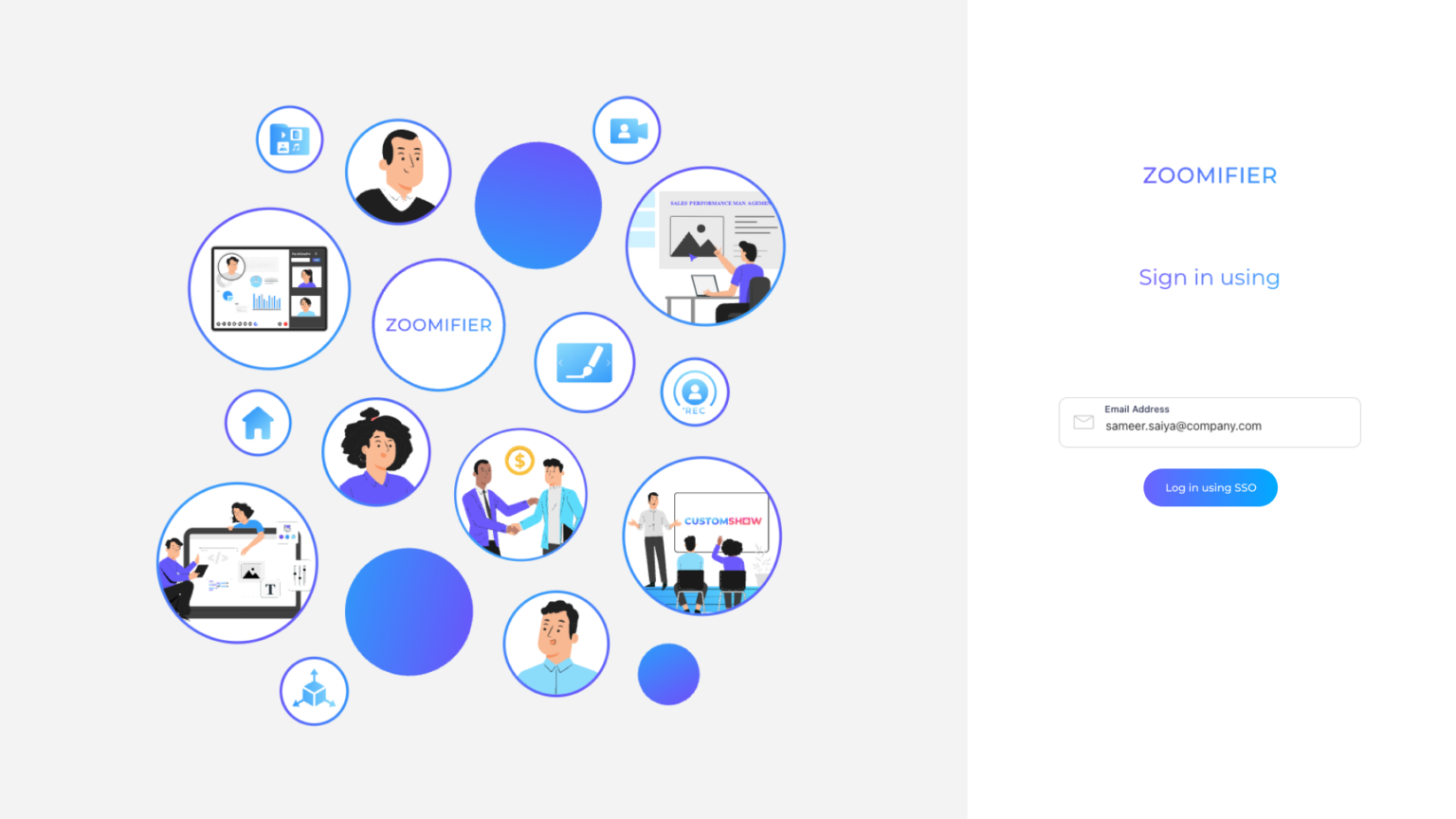

  16. 1. Okta login using Zoomifier login page
  17.  a. Enter your email address. If your Okta configuration is set correctly, the “Login using Okta” button will appear.
  18.  b. Click on it and follow the Okta login process.
  19.  c. You will get logged in and will be redirected to the Zoomifier homepage.
    20. Toolbar Controls
  20. 2. Accessing Zoomifier Using Okta dashboard apps

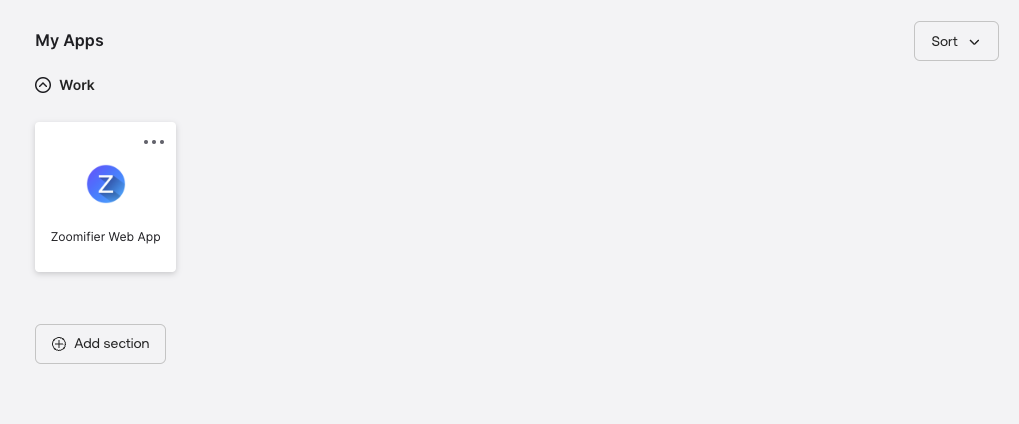

  21.  a. If your Okta admin has granted you access to the Zoomifier app, you will see the Zoomifier app tile on your Okta dashboard.
  22.  b. Click on it, and you will be logged in to the Zoomifier dashboard.
    23. Toolbar Controls
